Round magnetic charger USB magnetic cable connectorfor 400g magnetic force

Nama merek:	UPE
Nomor Model:	RC-1087-A01-11
Moq:	5000
Harga:	$1-$5
Detail Pengemasan:	PE
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO9002

Dokumen:

Nama:

Pengisi daya magnetik bulat

Bahan:

Ndfeb n52, pvc, pe

Kekuatan pegas:

80g ± 20g, pada stroke kerja 1,1mm

Kehidupan Mekanik:

10000 siklus min.

Tegangan:

Saat ini:

Gaya magnet:

400g ± 20%

Warna:

Hitam

Panjang kabel:

800mm

Hubungi Resistensi:

50mΩ Max (PIN)

Tes semprotan garam:

48 jam

Menyediakan kemampuan:

5KPCS/Hari

Menyoroti:

round magnetic USB charger connector

400g magnetic force cable

magnetic USB cable connector

Deskripsi produk

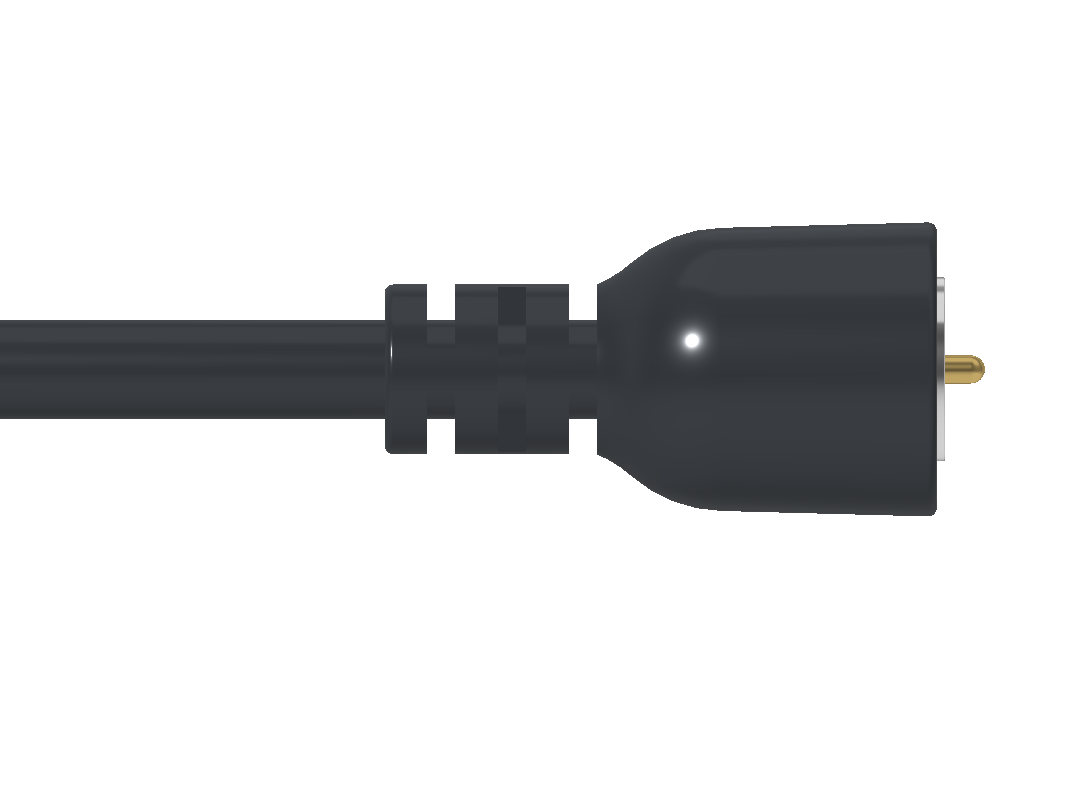

Round Magnetic Charger USB Cable Connector with 400g Magnetic Force

This round magnetic charger USB cable connector offers a convenient, auto-attach charging solution for various electronic devices. Featuring pogo pins for 3A fast current delivery and 400g±20% magnetic docking adsorption force, this connector provides reliable performance for magnetic charging applications.

Technical Specifications

Parameter	Specification
Cable	OD3.5 2C 22AWG Black PVC
Overmolding	PVC Black
Internal Molding	PE Transparent
Spring Force	80g±20g at 1.1mm working stroke
Mechanical Life	10,000 cycles minimum
Current	3A
Voltage	DC 12V
Magnetic Force	400g±20%
Contact Resistance	50mΩ max (PIN)
Salt Spray Test	48H
Certification	ROHS or REACH compliant
Test	100% open and short test

Key Advantages

Automatic adsorption connection for easy operation
Magnetic interface for effortless device removal
High life cycle supporting 50,000-300,000 reattachment cycles
Customizable waterproof design with IP68 rating capability
High current support (3A-20A) for faster recharging
Excellent corrosion resistance (48H-120H) for harsh environments
Custom shapes to match product design and enhance selling points
Magnet positioning with dual circuit protection for user-friendly orientation
Excellent scalability supporting power, signal, video, audio, and jack interfaces
Short development time with low-cost customization molds
Reliable high RF signal transmission with USB 2.0 compatibility

Applications

Why Choose UPE?

Professional customization service
Fast sample production capability
Strict quality control system
Processing with imported components
High-precision test equipment
Reasonable cost control procedures
Product environmental standards compliance

For any questions, please contact us at: union@upetech.net
