Right angle magnetic connector square 6pin male and female electrical pogo pin

Nama merek:	UPE
Nomor Model:	VIC1202A /VIC1202B
Moq:	5000
Harga:	$1-$5
Detail Pengemasan:	tas PE
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

ISO9002

Dokumen:

VIC1202A.pdf

Nama:

Konektor magnetik

Bahan:

Thn, kuningan, Sus304, ndfeb n52

Angkatan Musim Semi:

80g ± 20g

Storke yang bekerja:

1.0mm

Saat ini:

5.0A

Volatge:

12V

Gaya magnet:

600g

Kehidupan Mekanik:

50000 siklus min.

Kontak Resistance:

50mΩ Max (PIN)

Tes semprotan garam:

48 jam

Menyediakan kemampuan:

5KPCS/Hari

Menyoroti:

right angle magnetic connector 6pin

square pogo pin connector

magnetic electrical connector male female

Deskripsi produk

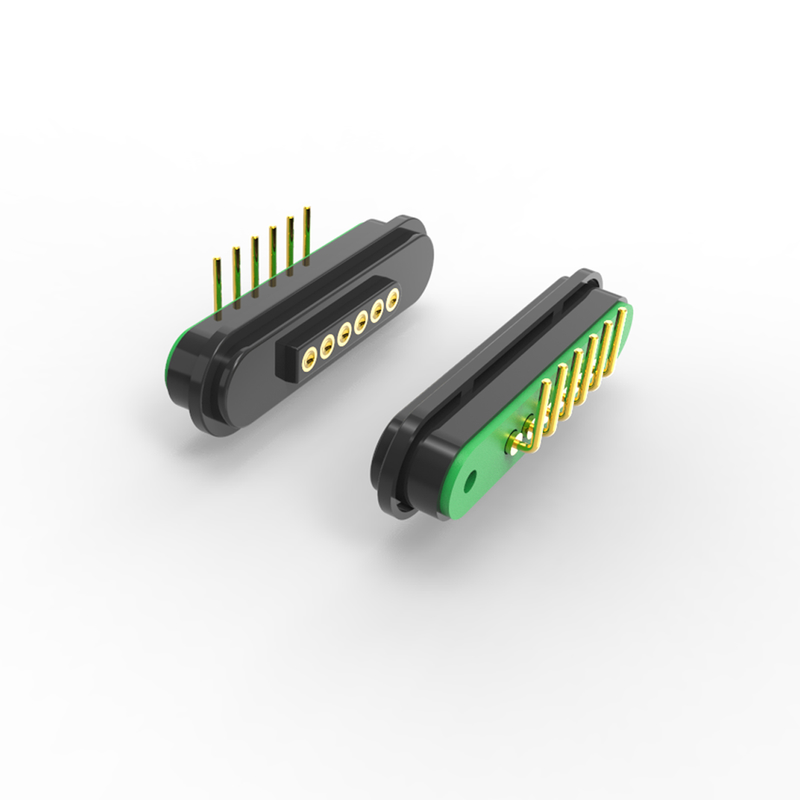

Right Angle Magnetic Connector Square 6pin Male and Female Electrical Pogo Pin

Right angle magnetic connector square 6pin male and female electrical pogo pin. Gold-Plated, HTN Housing, NdFeB Magnet, 12V/5A, UL94 V-0

UPE is a professional magnetic connector & magnetic cable connector manufacturer. We have our own professional designers to meet any of your requirements and provide magnetic connector customization service. Different magnetic pogo pin connector products and solutions can be designed according to different customer needs.

Key Features

Right-angle design: Saves space for PCB mounting in compact devices.
6-pin configuration: Supports power (12V/5A) + data signals.
Strong magnetic coupling: ≥600G holding force (NdFeB magnet).
High durability: 50,000+ mating cycles, UL94 V-0 flame-retardant.
Anti-short-circuit design with clear polarity marking.

Materials & Construction

Component	Specification
Contacts	6 pins (male/female), brass base with gold plating (≤50mΩ resistance).
Housing	HTN + 30% filler, UL94 V-0 black (high-temperature resistant).
Magnet	NdFeB (neodymium) with optional epoxy coating (passes 48hr salt spray test).

Mechanical & Electrical Properties

Parameter	Value
Spring Force (per pin)	80g ± 20g @ 1.0mm deflection.
Magnetic Force	≥600G (male-female adhesion).
Rated Voltage	12V DC.
Current Rating	3A continuous / 4A peak.
Contact Resistance	≤50mΩ per pin.
Operating Temperature	-30°C to +85°C.

5Pin Male Connector Technical Drawing (Key Dimensions)

5Pin Female Magnetic Connector Technical Drawing (Key Dimensions)

Why Choose UPE

Fast prototyping: 3-5 days for samples
Cost-effective: Competitive MOQ pricing
Quality assurance: 100% automated testing
High-tech production with precision engineering
Systematic quality control for consistent performance

Advantages of Magnetic Connector

Automatic adsorption connected experience; Easy operation
Uses a magnetic interface to remove the device easier
High life cycle. It supports 50,000-300,000 reattachment life times
Easy to customized waterproof design, the female can achieve dust-proof and waterproof (IP68)
Support a high current (3A-20A), faster recharge
Excellent corrosion rating (48H-120H) meet the harsh environments
Shape customized to meet with product shape matching, improve product selling point
Magnet positioning, use of magnets and structure to dual circuit protection reach distinguish the direction (user-oriented and user-friendly)
Excellent scalability interface, Can be achieved (Power Signal Video Audio Jack Etc)
Development time is short, low-cost mold for customization
Provide a reliable high RF signal transmission. Our connector is USB 2.0

Magnetic Connectors Application

How to Place the Order

You send us drawing or sample
Our professional engineering team conducts the assessment
You confirm the drawing and we make the sample to send you
You test the sample and approved, then place an order and pay 50% deposit
We start to make the product
When the goods is done, we take photos for your check and you then pay the balance
We deliver the products to you with DHL, TNT, UPS, Fedex

Order Details

Payment Term	T/T, 50% Deposit, 50% Balance
Payment Method	T/T, PayPal, OCBC
Sample Lead Time	Inventory sample 2-3 Working day / customized sample 5-7 Working day
Production Lead Time	10-15 Working day
Made For	America, Europe, Asia, South African
Trade Term	EXW
Freight	Air, Sea, Express
Service	High quality with reasonable price, OEM service, any special size, color, designs are acceptable
