Konektor magnetik

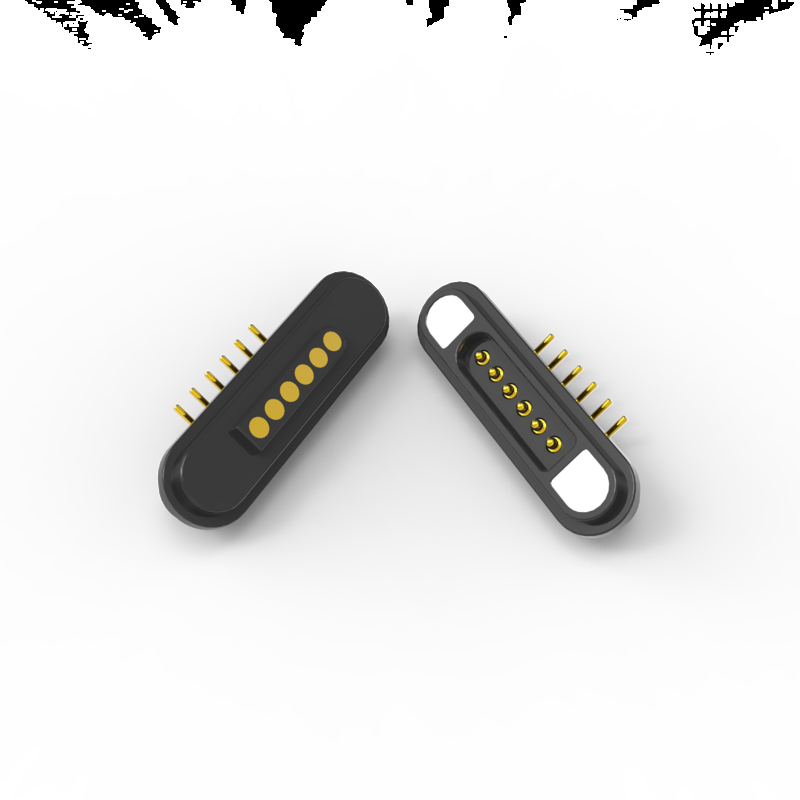

6pin male and female magnetic connector use in electonic candle light

Semua Kategori

Konektor Pin Pogo

PIN POGO

konektor dengan beban pegas

Konektor magnetik

Konektor Kabel Magnetik

Konektor magnetik bulat

Konektor pin wanita

Konektor Industri

konektor tahan air

bagian putar presisi

Hubungi kami

Ms. KIKI

union@upetech.net

13434524996

upetech

Hubungi Sekarang

6pin male and female magnetic connector use in electonic candle light

Nama merek:	UPE
Nomor Model:	VIC1202A/ VIC1202C
Moq:	5000
Harga:	$1-$5
Detail Pengemasan:	tas PE
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi produk

Informasi Rinci

Tempat asal:

Tiongkok

Sertifikasi:

ISO9002

Dokumen:

VIC1202A.pdf

Nama:

Konektor magnetik

Melempar:

2.2mm

Bahan:

Thn, kuningan, Sus304, ndfeb n52

Angkatan Musim Semi:

80g ± 20g

Storke yang bekerja:

1.0mm

Saat ini:

5.0A

Volatge:

12V

Gaya magnet:

600g

Kehidupan Mekanik:

50000 siklus min.

Kontak Resistance:

50mΩ Max (PIN)

Menyediakan kemampuan:

5KPCS/Hari

Menyoroti:

6pin magnetic connector for electronic candles

male female magnetic connector electronic light

magnetic power connector with 6 pins

Deskripsi produk

6pin Male and Female Magnetic Connector for Electronic Candle Light

Product Description

6pin male and female magnetic connector designed for electronic candle light applications.

Material Specifications

The yellow metal needle part is gold-plated with brass surface
Plastic material: HTN+30% UL94 V-0 black (high temperature resistant)
Magnet: High-performance permanent magnet neodymium iron boron

Mechanical Properties

Spring force: 80g ± 20g at 1.0 working height
Service life: 50,000 times minimum

Electrical Properties

Reference voltage: 12V
Continuous working current: 5.0A
Contact static impedance of the needle: 50mΩ Max (PIN)
High voltage test: AC1000V 0.5mA 3SEC / DC 1000V 0.5mA 3 SEC

Product Features

Environmental protection materials, ROHS, REACH compliant
Magnetic attraction force: >600G
Anti-short-circuit structure design
Clear polarity and electrical direction identification
Magnet can be coated with epoxy resin (passes 48-hour salt spray test)
Stable pin spacing size with PCB board fixation

Applications

PCB board soldering with plug-in
Mold molding and injection molding

Technical Specifications

Category	Parameter	Value
Electrical	Voltage Rating	12V DC
	Continuous Current	5A (per power pin)
	Contact Resistance	50mΩ Max (PIN)
Mechanical	Spring Force	80g ± 20g
	Magnetic Force	600G
	Operating Temperature	-40°C to +105°C
Materials	Housing	HTN+30% UL94 V-0 black
	Contacts	Brass + gold plating
	Magnet	Neodymium iron boron

Technical Drawings

Why Choose UPE

Fast prototyping: 3-5 days for samples
Cost-effective: Competitive MOQ pricing
Quality assurance: 100% automated testing
High-tech production with precision engineering
Systematic quality control for consistent performance

Advantages of Magnetic Connector

Automatic adsorption connection
Easy operation with magnetic interface
High life cycle: 50,000-300,000 reattachment cycles
Customizable waterproof design (IP68 possible)
High current support (3A-20A)
Excellent corrosion rating (48H-120H)
Custom shapes for product matching
Magnet positioning with dual circuit protection
Excellent scalability (Power, Signal, Video, Audio, etc.)
Short development time with low-cost customization
Reliable high RF signal transmission (USB 2.0 compatible)

Application Example

Order Process

You send us drawing or sample
Our engineering team conducts assessment
You confirm drawing and we make sample
You test and approve sample, then place order with 50% deposit
We begin production
Upon completion, we send photos for approval
You pay balance and we ship via DHL, TNT, UPS, or Fedex

Order Information

Payment Term: T/T, 50% Deposit, 50% Balance
Payment Method: T/T, PayPal, OCBC
Sample Lead Time: Inventory sample 2-3 days / Customized sample 5-7 days
Production Lead Time: 10-15 days
Markets: America, Europe, Asia, South Africa
Trade Term: EXW
Freight Options: Air, Sea, Express
Services: High quality with reasonable price, OEM service, custom sizes/colors/designs

Any questions? Please contact: union@upetech.net
